1. Full-color low-light imaging technology
- By fusing images in real time through AI algorithms, the details in the dark areas and the color fidelity are enhanced.
- Ultra-low light enhanced large aperture lens + back-illuminated sensor, capturing weak light, reducing noise in night images
2. Modularization, flexibility and adaptability
- Wide compatibility: Supports mainstream device interfaces (Type-C, cold shoe, 1/4 screw), and can be quickly installed on cameras, helmets, drones, etc.
- Magnetic quick-release design: Can be disassembled without tools, suitable for multi-scenario switching requirements.
- Protection grade: Waterproof and dustproof, stable operation in extreme environments ranging from -20℃ to 60℃.
3. Intelligent interaction and expansion
- Wireless interconnection: Through Wi-Fi/ connect to the mobile phone APP, preview and adjust parameters (ISO/ shutter color mode) in real time.
- External storage: Supports TF card expansion (up to 256GB) and direct connection to a computer via USB-C for data export.
Parameters
Model | NK-002 |
Transmission mode | WIFI、TYPE-C Direct wiring harness connection |
Video format | H264 |
Voltage | 5V |
Video resolution | 1920*1080 |
Photo resolution | 1920*1080 |
Storage type | SD Card, TF card |
Frame rate | 30fps |
Battery | 5200mAh |
Field of view Angle | 100°±10 |
Nighttime illuminance color imaging | 0.004lux |
Performance | Parameters |
System structure | Dual-core ARM Cortex A55@850MHz(3 DMIPS/MHz)32 kbi-Cache, 2TOPS NN computing power |
Image sensor | Line-scan color image sensor |
| Lens specification | Horizontal: 93.1 degrees, vertical: 49.6 degrees, Diagonal: 110.8 degrees |
Maximum resolution | 2 million to 4 million pixels, full color |
Video frame rate | 30FPS real-time video, supporting H.265/H.264 video encoding, with a maximum output resolution of 2K |
USB interface | TYPE-C |
AI digital noise reduction | Support |
Screen-off function | During the video recording process, the screen is off. When the screen is off, press any key to turn it on |
Anti-overexposure design | Full target surface adaptive exposure time control |
Viewing distance in a completely dark environment | The viewing distance in complete darkness is approximately 300 to 500 meters |
Low-light viewing distance | 1M～Ultra-long distance |
Language | Switch between Chinese and English |
Storage | Supports MICROSD card storage (up to 256G) |
Working temperature and humidity | -10℃~+55℃, Humidity less than 95%(no condensation) |
Application scenarios | Hunting, reconnaissance, night driving, security and surveillance, outdoor sports, camping fun, cave exploration, night fishing and boating, wildlife observation and photography, etc |

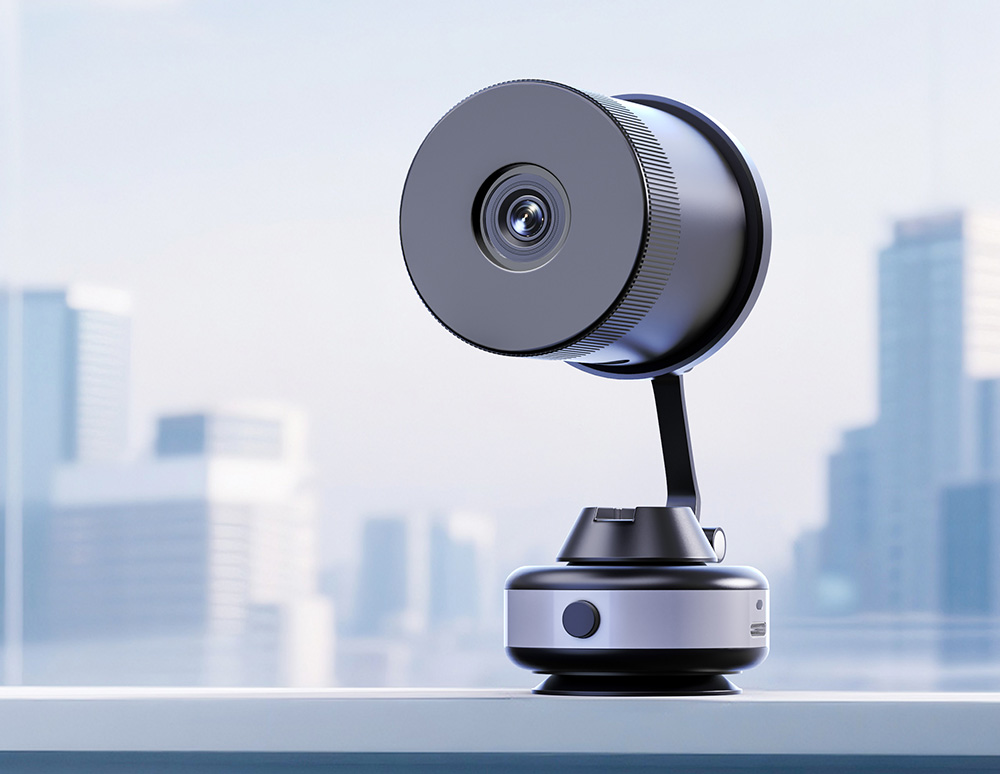

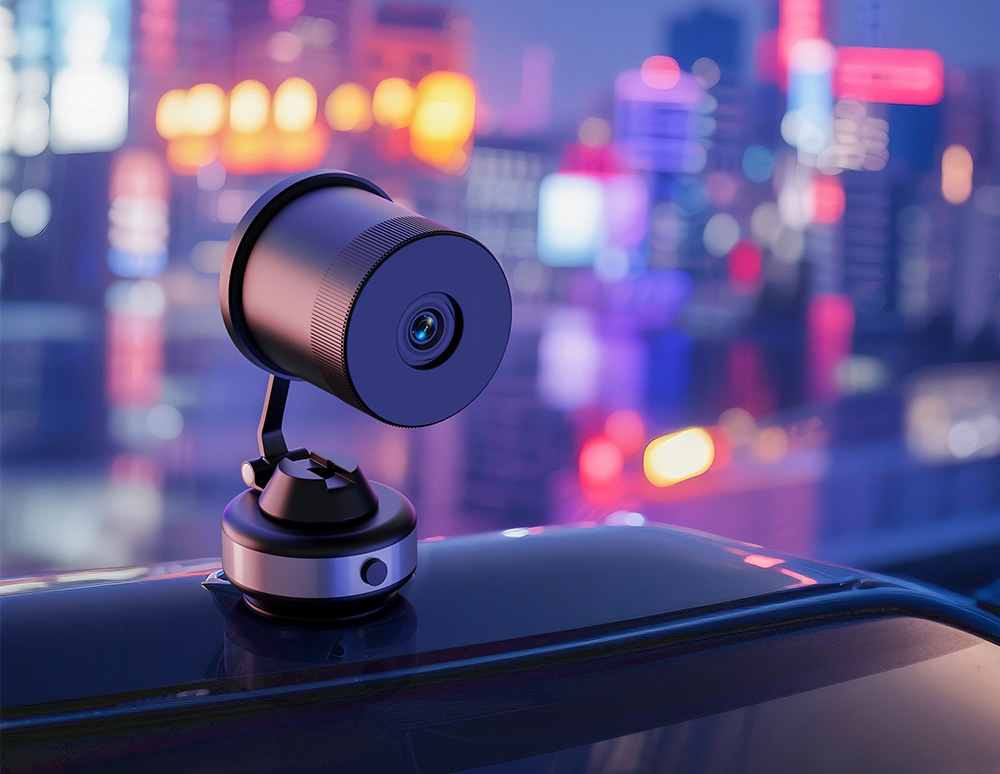

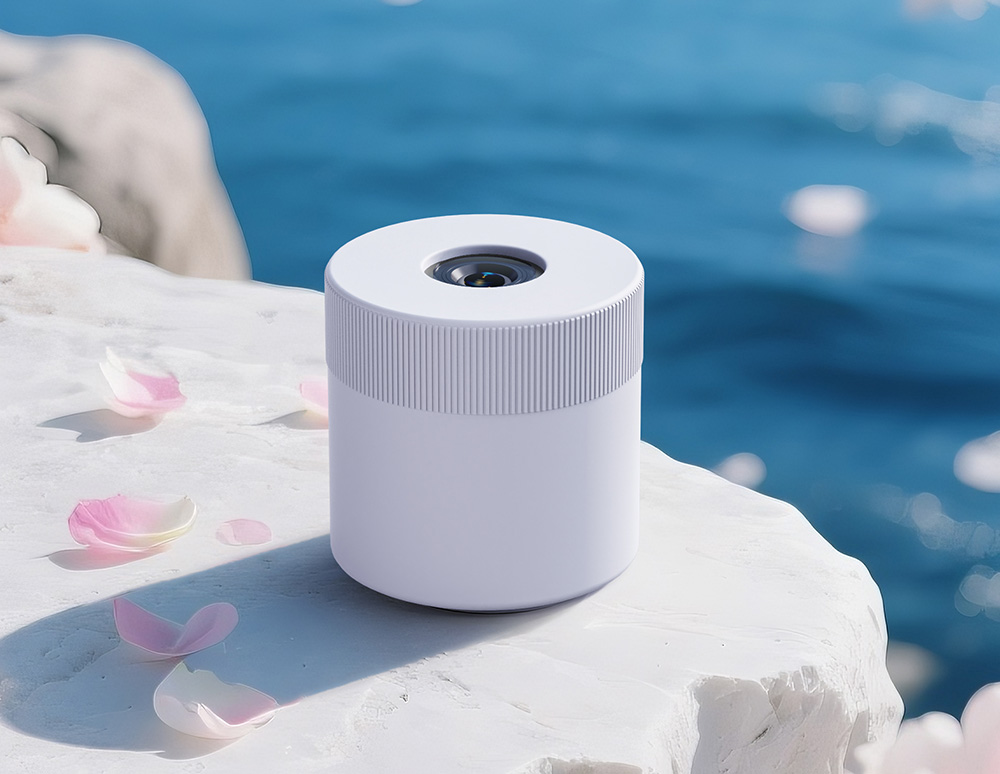

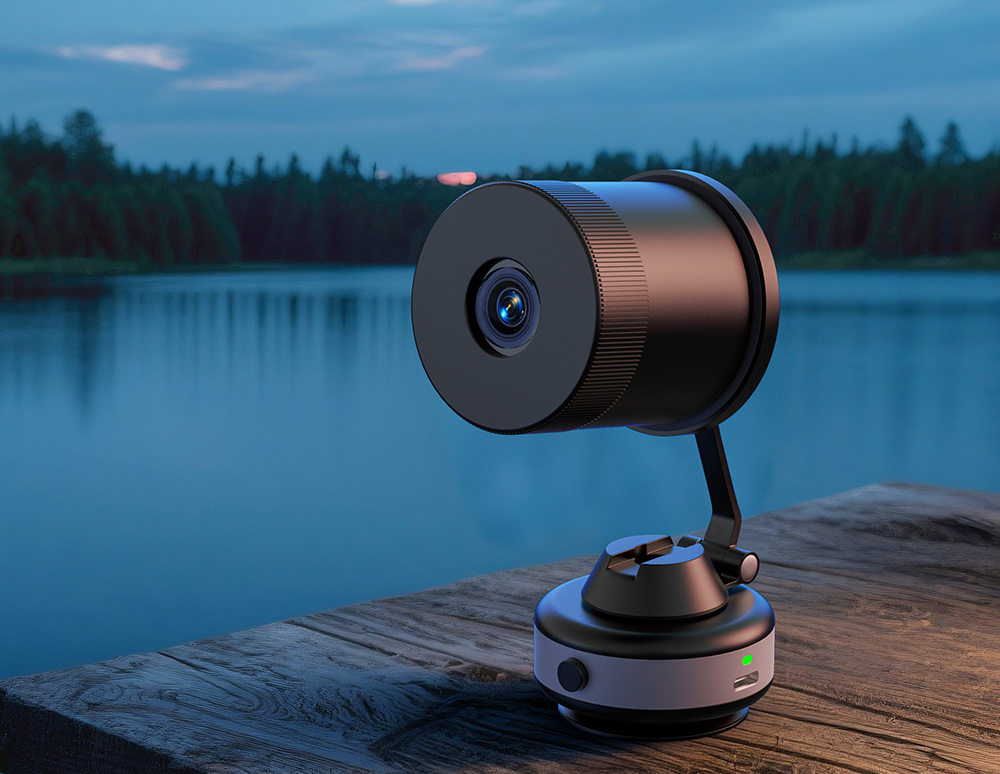

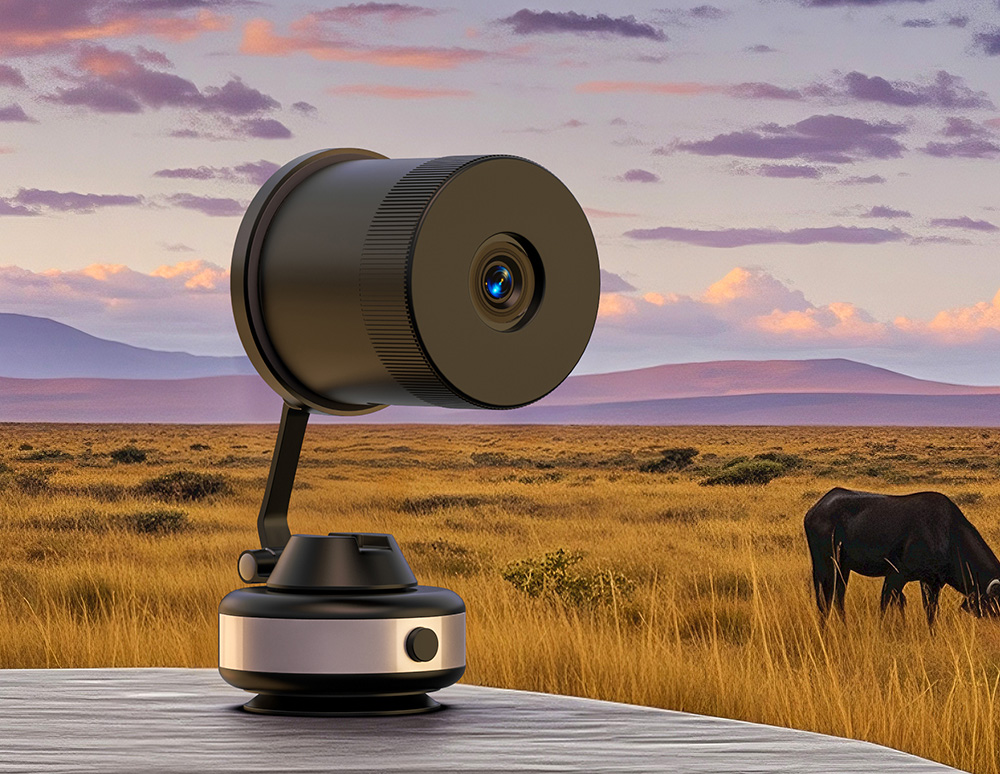

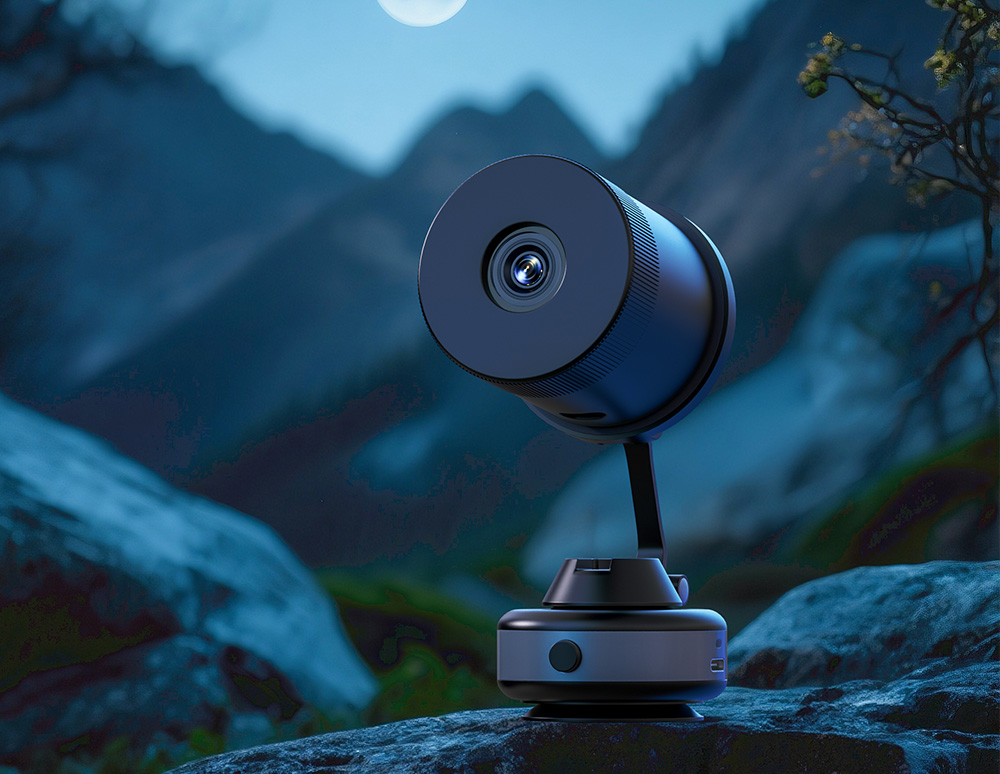

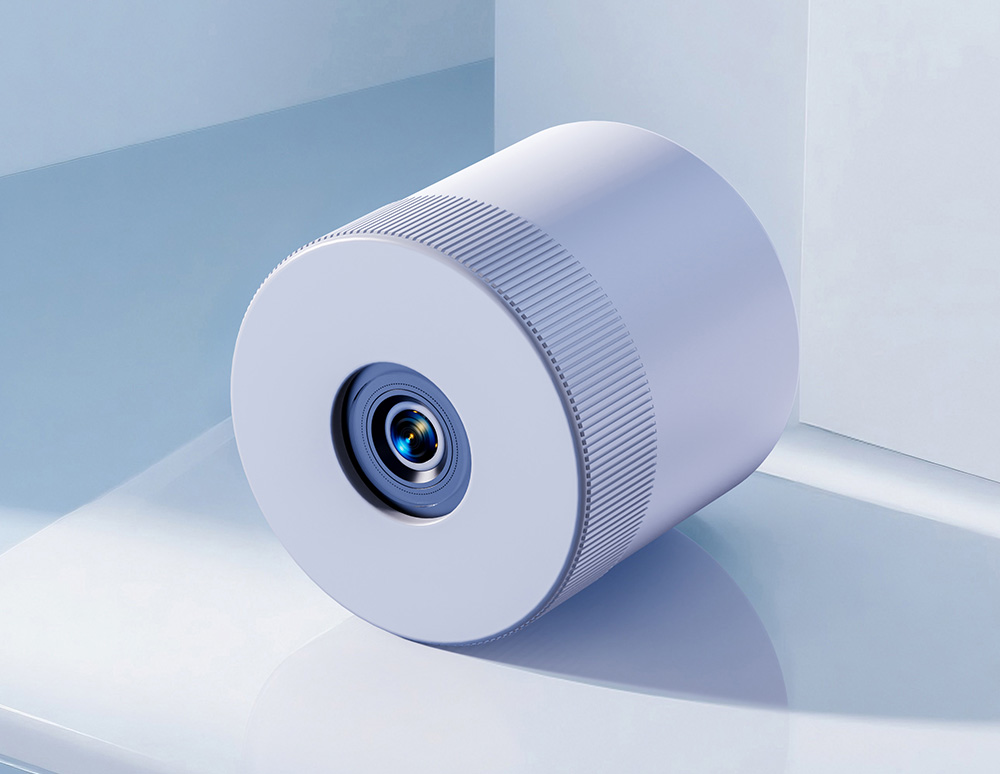

Micro Light full-color night vision device with external camera module
The Micro Light Full-color Night vision device external camera module is a portable accessory specially designed to expand the night vision capabilities of the device and is compatible with mainstream sub-product mobile terminal devices. Equipped with a highly sensitive low-light sensor and AI full-color imaging algorithm, it can capture clear color images in extremely low light environments (0.004lux) without relying on infrared supplementary light, avoiding the risk of red exposure of traditional night vision devices, and meeting the dual needs of concealed shooting and professional recording.
